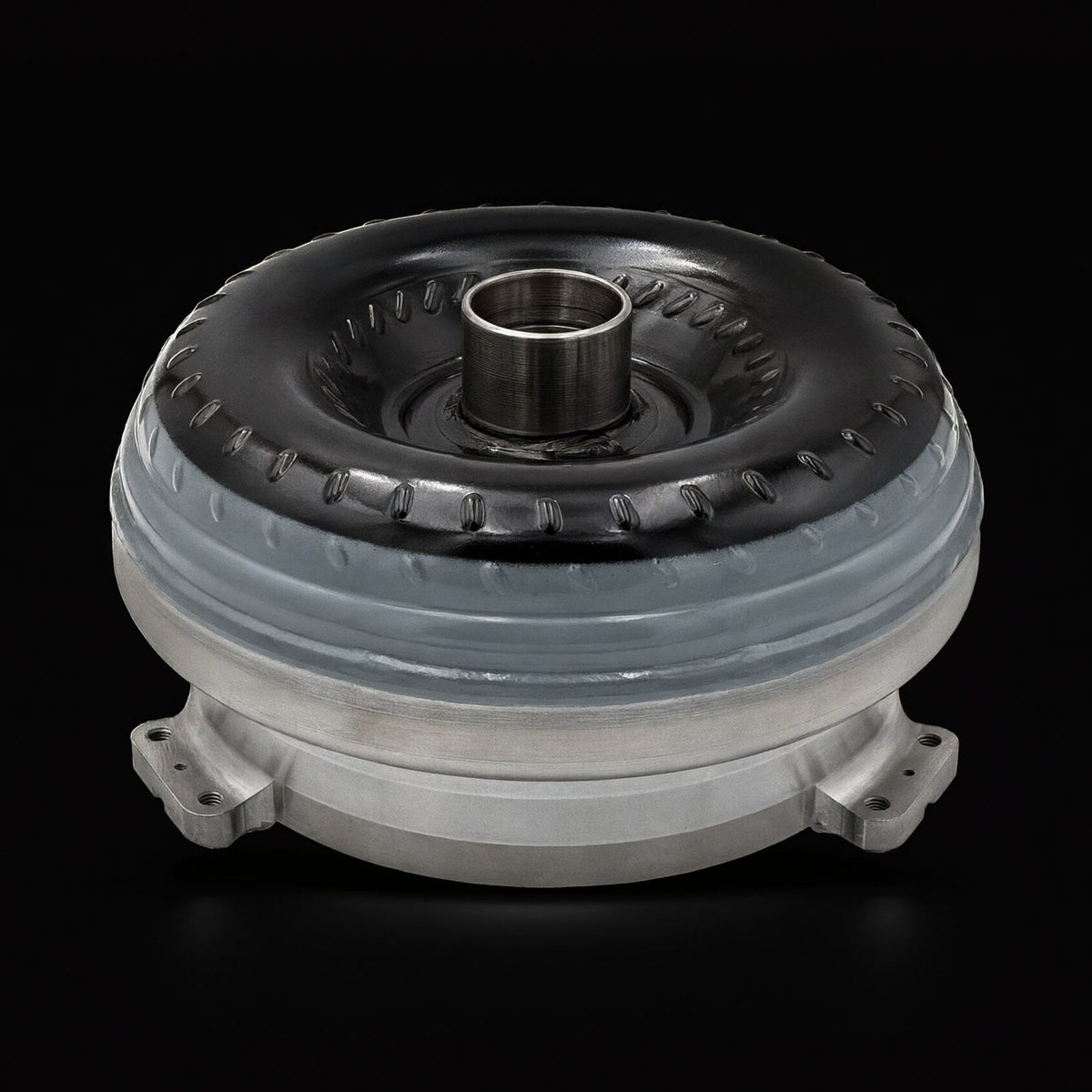

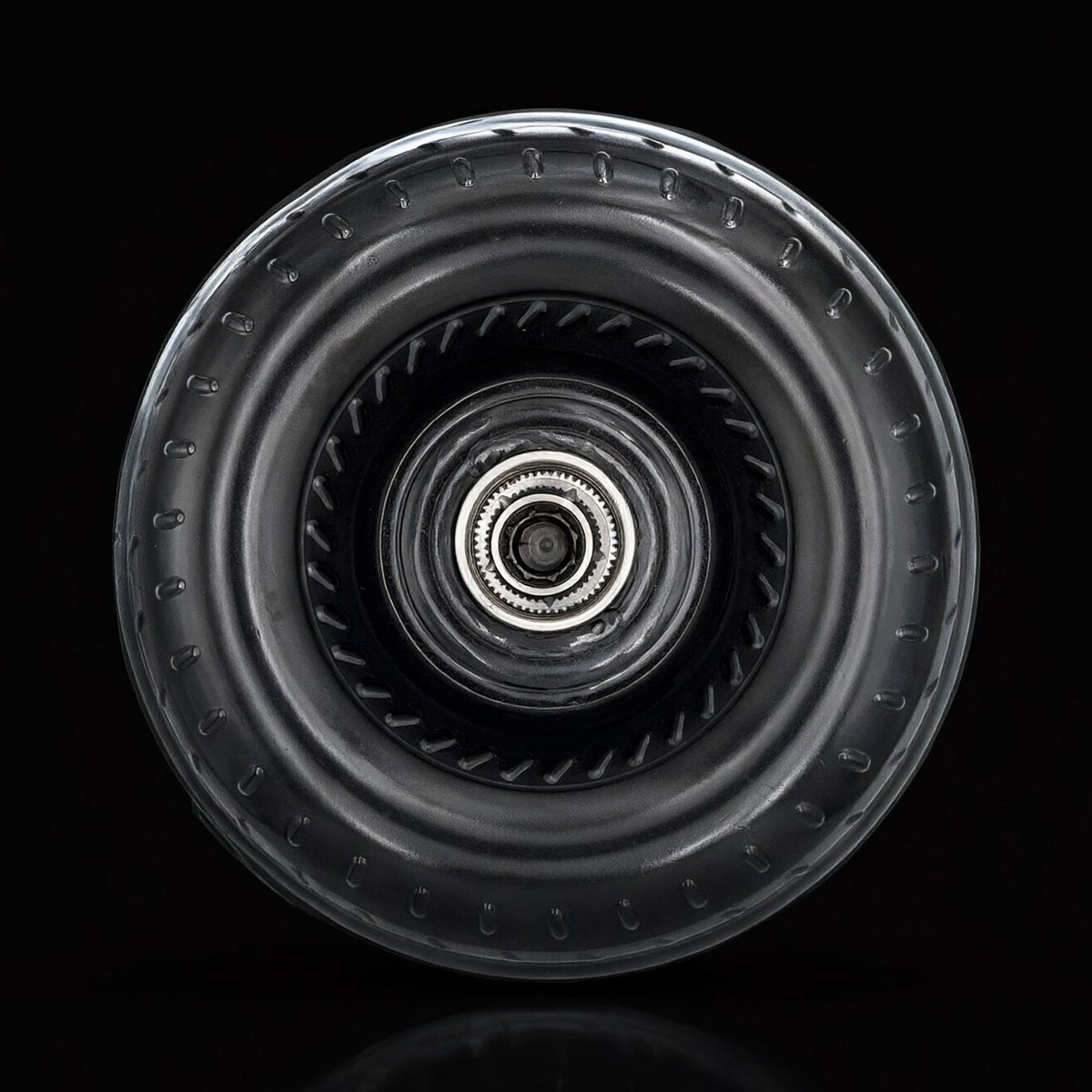

Circle D Pro Series 10" 8HP70-8HP90 Torque Converter – Hellcat, Demon, Trackhawk, Scat Pack, Charger & Challenger
Couldn't load pickup availability
Question about this product?
We're happy to help.
The Pro Series is Circle D's top-shelf 10" converter for the ZF 8-speed, with a billet steel front cover and a modular clutch pack rated for more than 1,500 ft-lbs of holding capacity. Choose the transmission application by pilot dimension.
Fits
- Hellcat, Scat Pack, Charger and Challenger 8HP70 builds (per Circle D)
- High-horsepower Hellcat, Demon and Trackhawk 8HP90 builds (per Circle D)
- Also offered for the 8HP75 2019+ truck platform
Features
- CDS exclusive billet stator

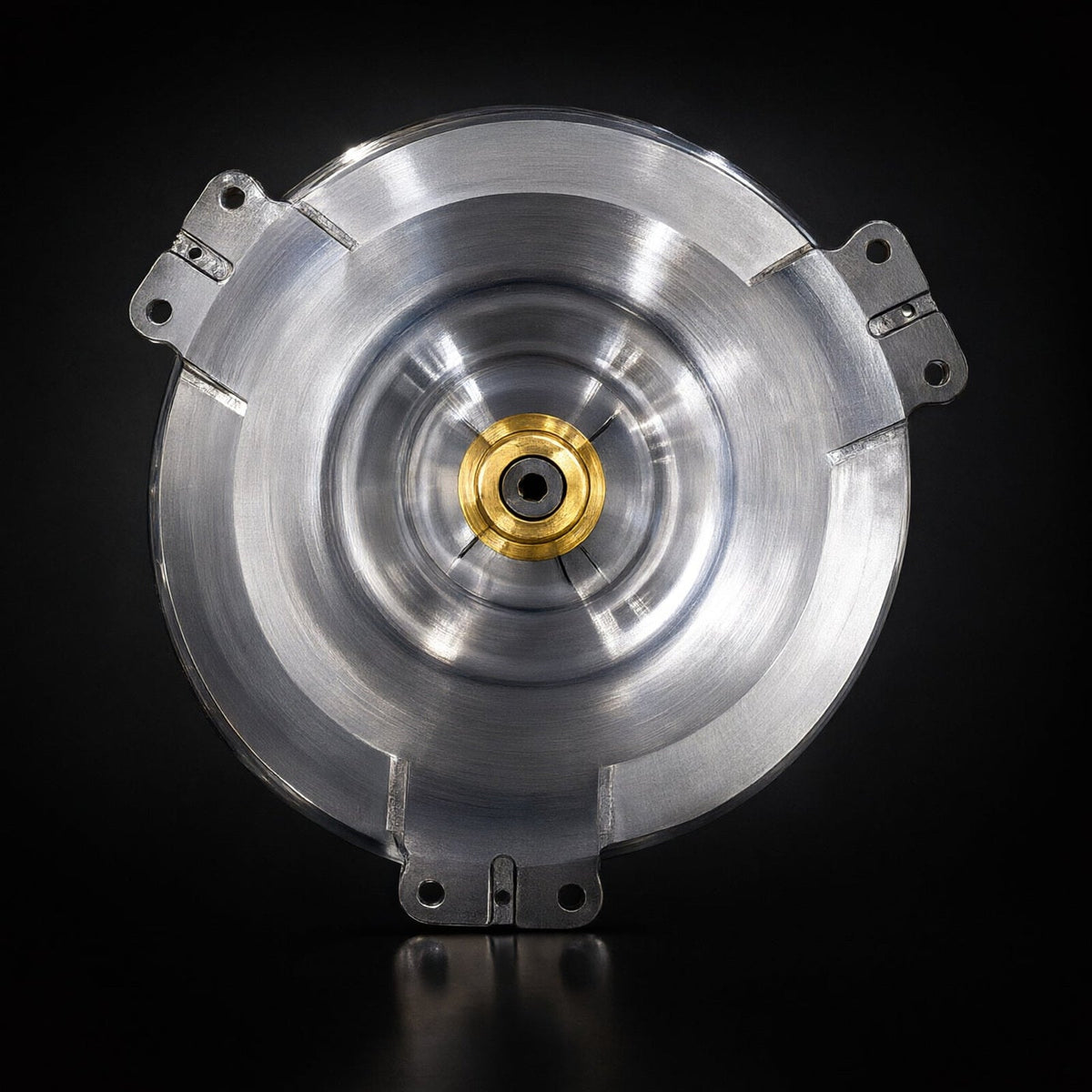

- Billet steel front cover
- Furnace-brazed, hand TIG-welded pump and turbine
- Torrington-style bearings
- Modular clutch pack assembly (1500+ ft-lbs holding capacity)
- Brass pilot (variable lengths)
Satera Tuning handles the install.
Want it installed? Our technicians can install it at our shop in Marengo, IL, and we tune it on our in-house chassis dyno, by appointment. Street tuning dials in drivability.
Not local? Many Mopar and Ford combinations can be tuned remotely with HP Tuners.
Submit a work request and we'll confirm fitment, install and tuning for your car. Shop rates are listed on our Rates & Terms page.
Lead time depends on the manufacturer and on our shop schedule, so it varies by part. If you need something by a certain date, contact us before ordering and we'll check current availability.
See our returns and warranty policy for the details on returns and exchanges.
